Description
- The MAX98300 mono 2.6W Class D amplifier provides Class AB audio performance with Class D efficiency.
- This device offers five selectable gain settings (0dB, 3dB, 6dB, 9dB, and 12dB) set by a single gain-select input (GAIN).
- Active emissions-limiting edge-rate and overshoot control circuitry greatly reduces EMI.
- A filter less spread-spectrum modulation scheme eliminates the need for output filtering found in traditional Class D devices. These features reduce application component count.
- The MAX98300 industry-leading 0.78mA at 3.7V (1.1mA at 5V) quiescent current extends battery life in portable applications.
- The MAX98300 is available in an 8-pin TDFN-EP (2mm x 2mm x 0.8mm) and a 9-bump (1.2mm x 1.2mm) WLP.

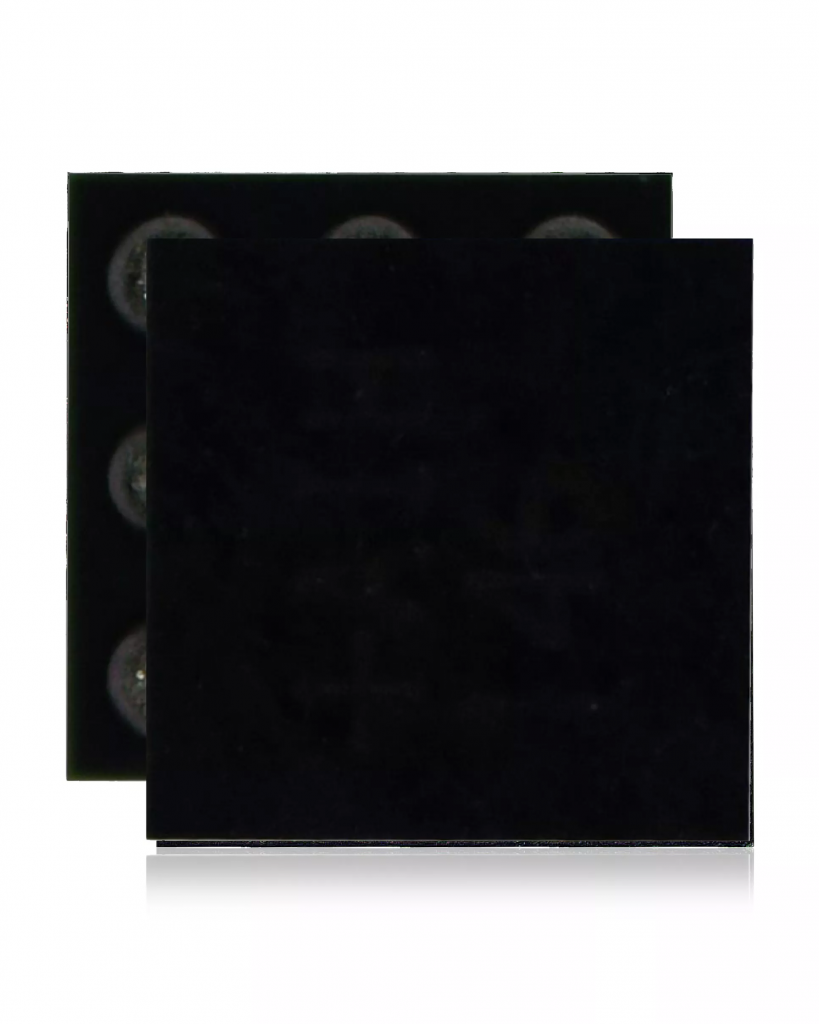

- Parts Number: U6610
- Printed Number: MAX98300E
-
Compatible with :
- Pro Unibody 13 (A1278 / Early 2011 / Late 2011 / Mid 2012)
